November 23rd - 24th, 2017

- Grinded damaged bow fiberglass

- Laminated bow

November 23rd, 2017

- Demounted Cockpit Shower and water pipes
- Mounted new Boom Vang Hydraulic Panel
- Dry fitted Radio in Hydraulic Panel

November 21st, 2017
- Demounted and took watermaker component ETD (Energy Transfer Device) to Malcolm => measured thread 1/4 British Pipe Thread BSPP); dry fitted connection fittings and hoses (~5’)

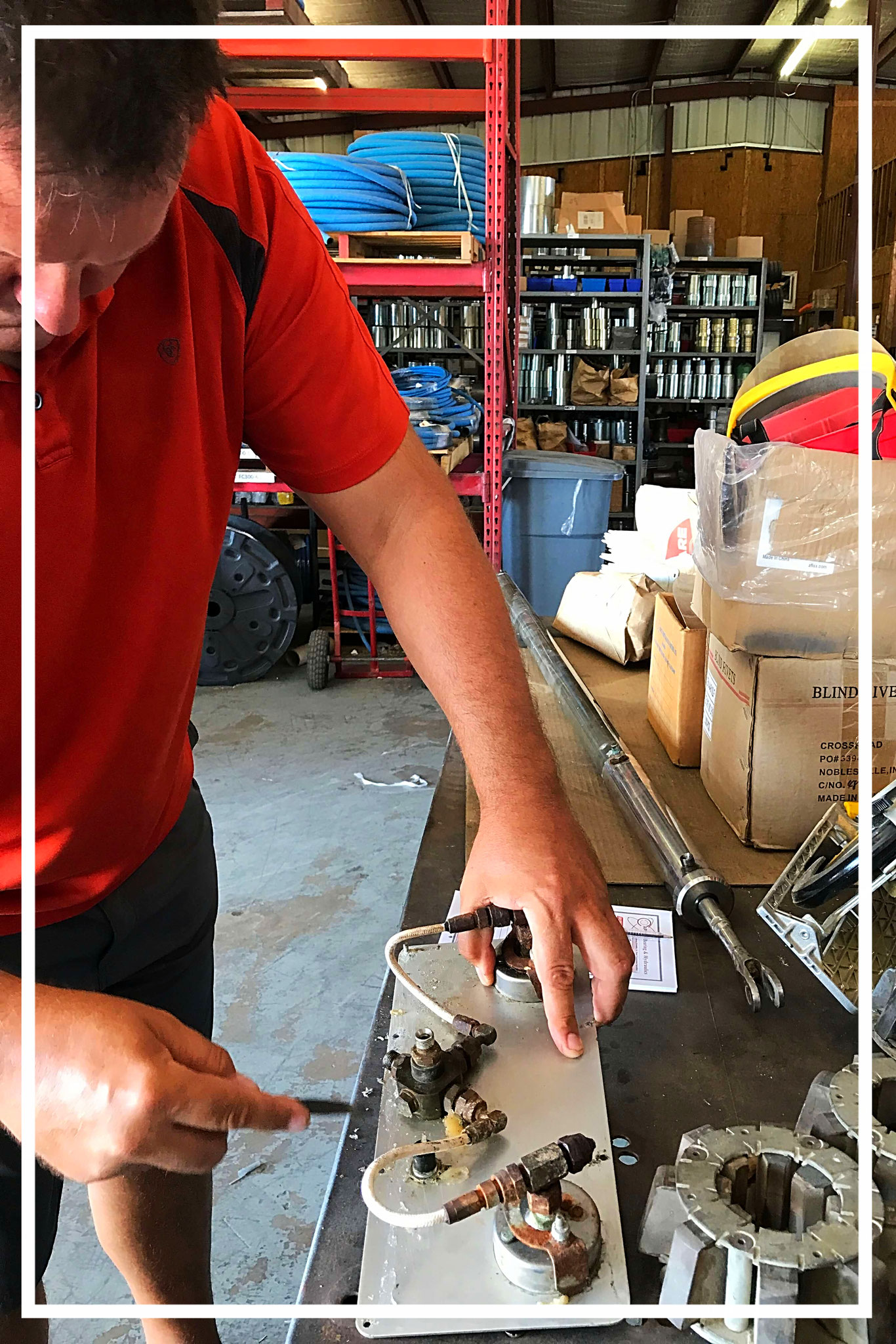

- Measured Hose length ... 40’ (39,8’) and took Boom Vang Hydraulic Components to Malcolm => dry fitted hydraulic components (pump, needle valve, pump lever) and connected components with hoses in to the panel

November 13th, 2017

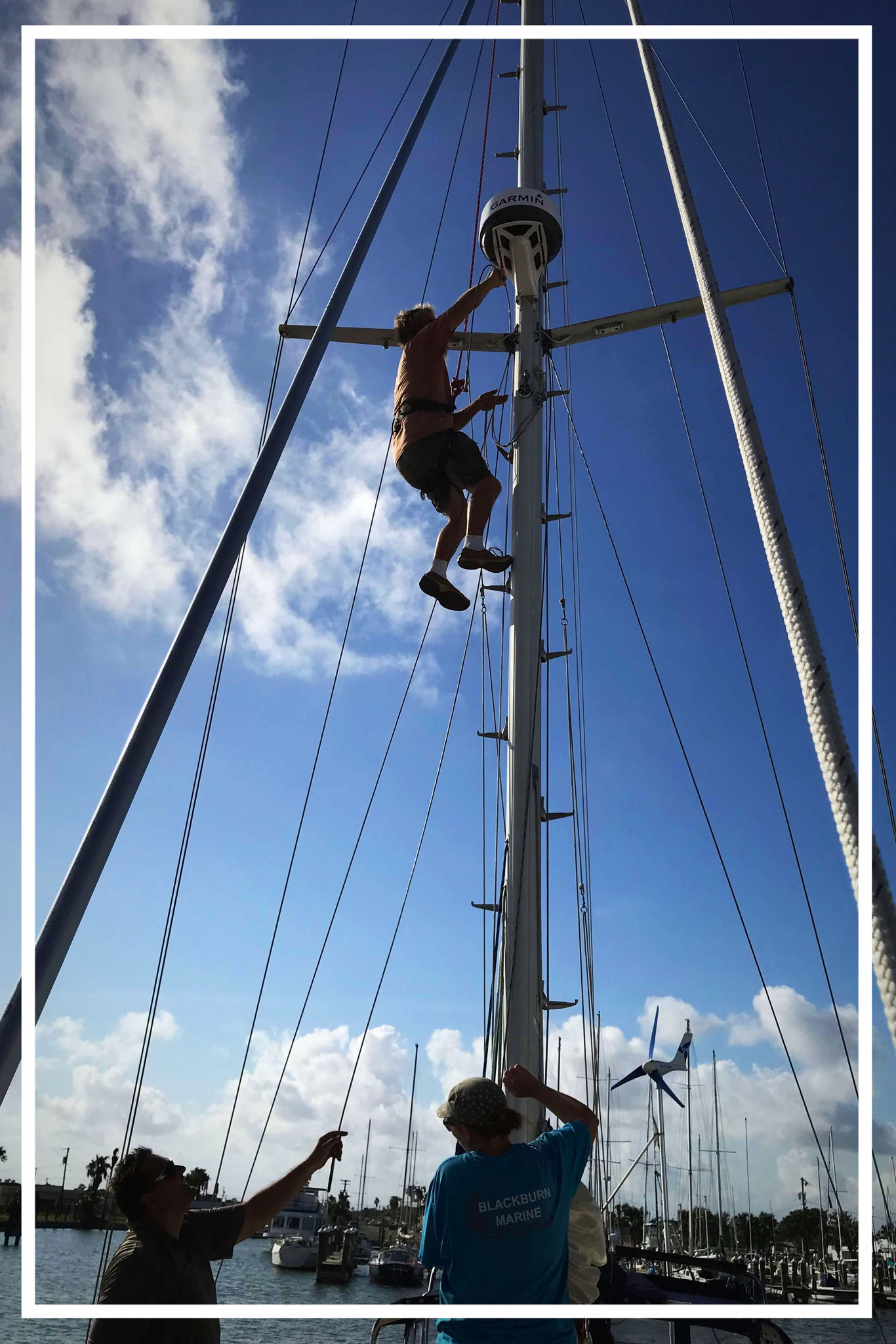

- Mounted welded portside upper Spreader
- Installed SSB Antenna Insulators in Backstay

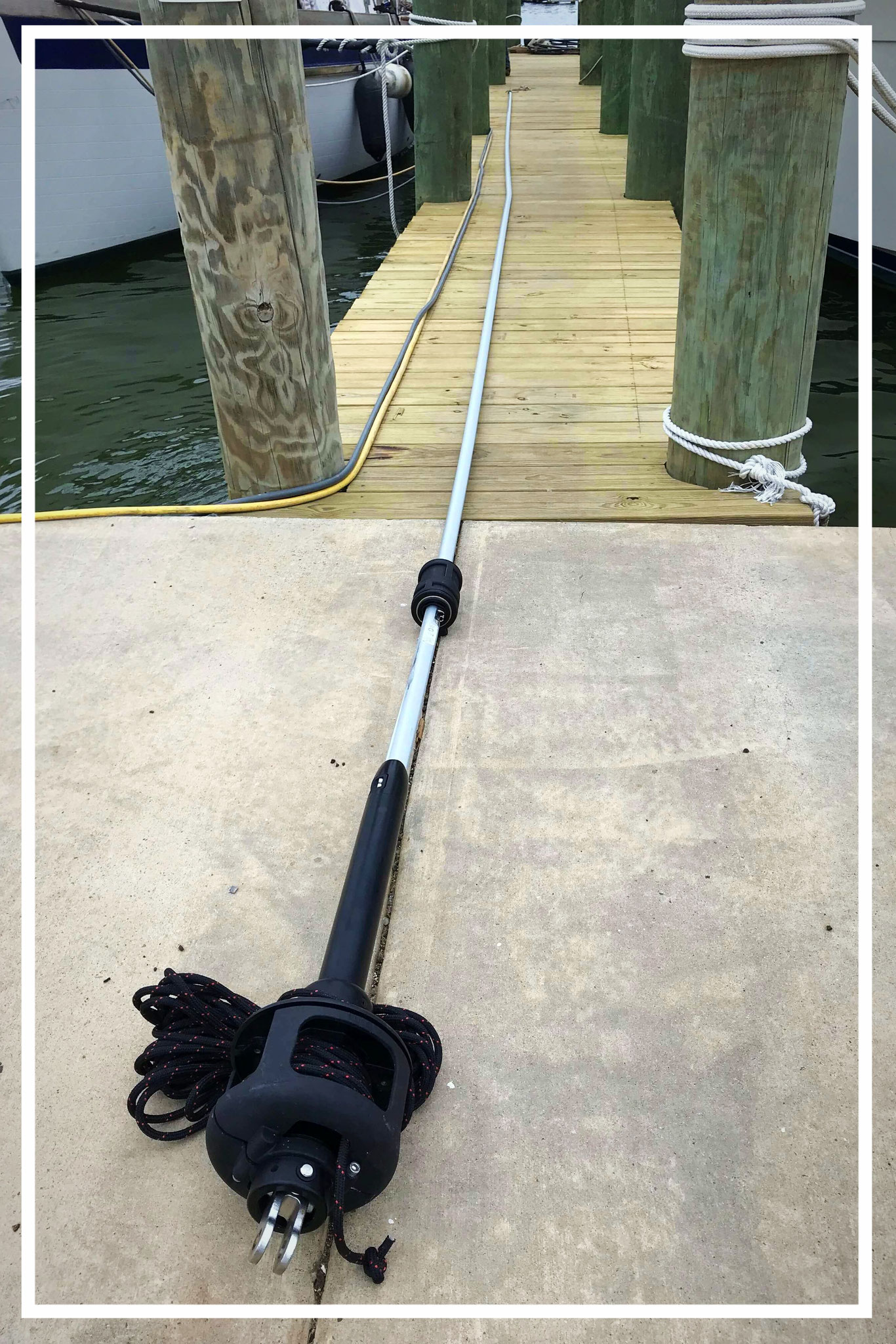

- Exchanged Upper Shrouds (incl measuring and swaging)
- Mounted new gWind
- Mounted new Windex
- Pulled Flag halyards
- added stem ball cones to all shrouds ... more contact area
- Tensioned Rigging (shrouds & stays & Rollerfurler)
- turned Foresail Rollerfurler Drum

November 11th, 2017

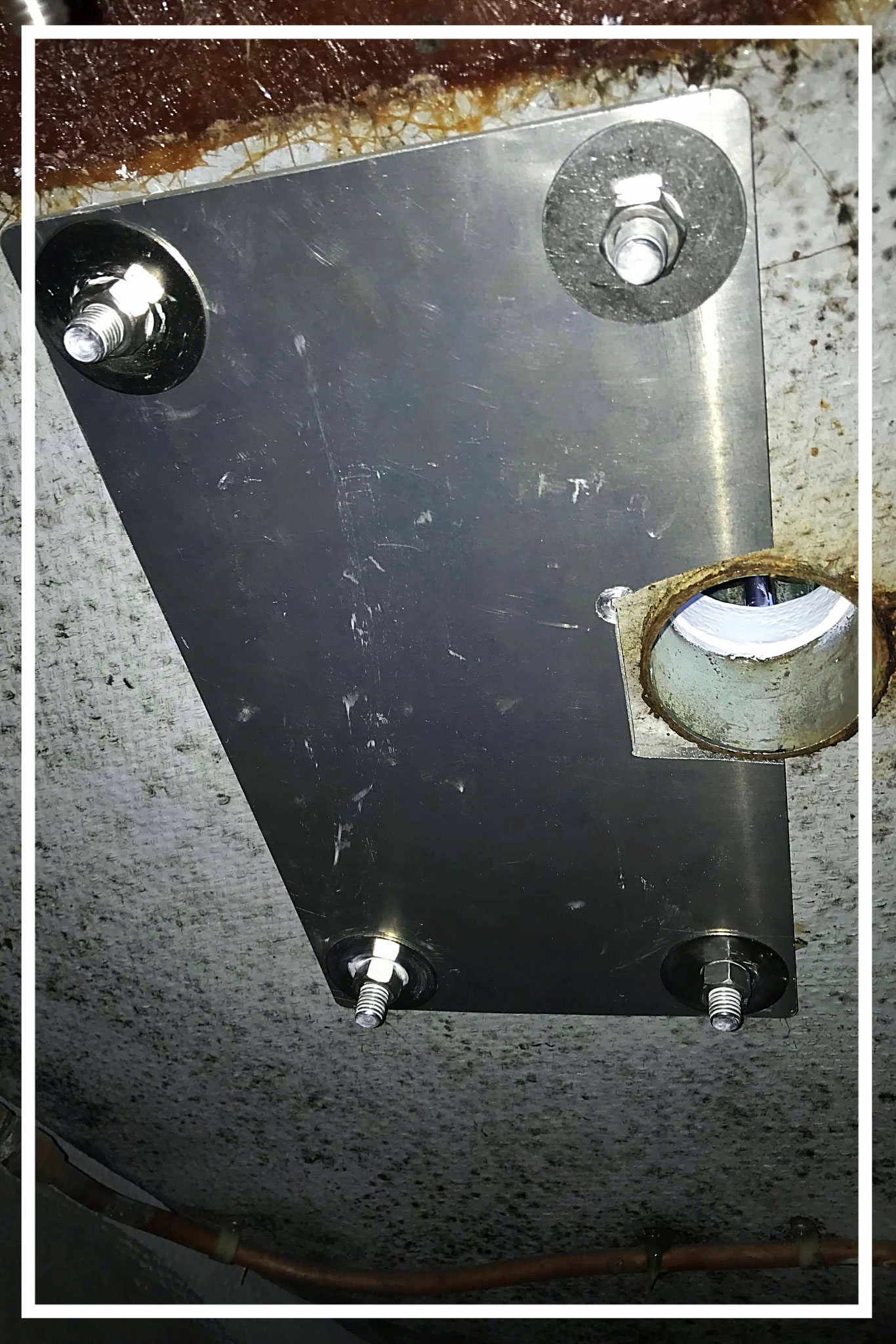

- Finished assembly Windlass and mounted Windlass with new backing plate in position

November 10th, 2017

At Dons Workshop ...

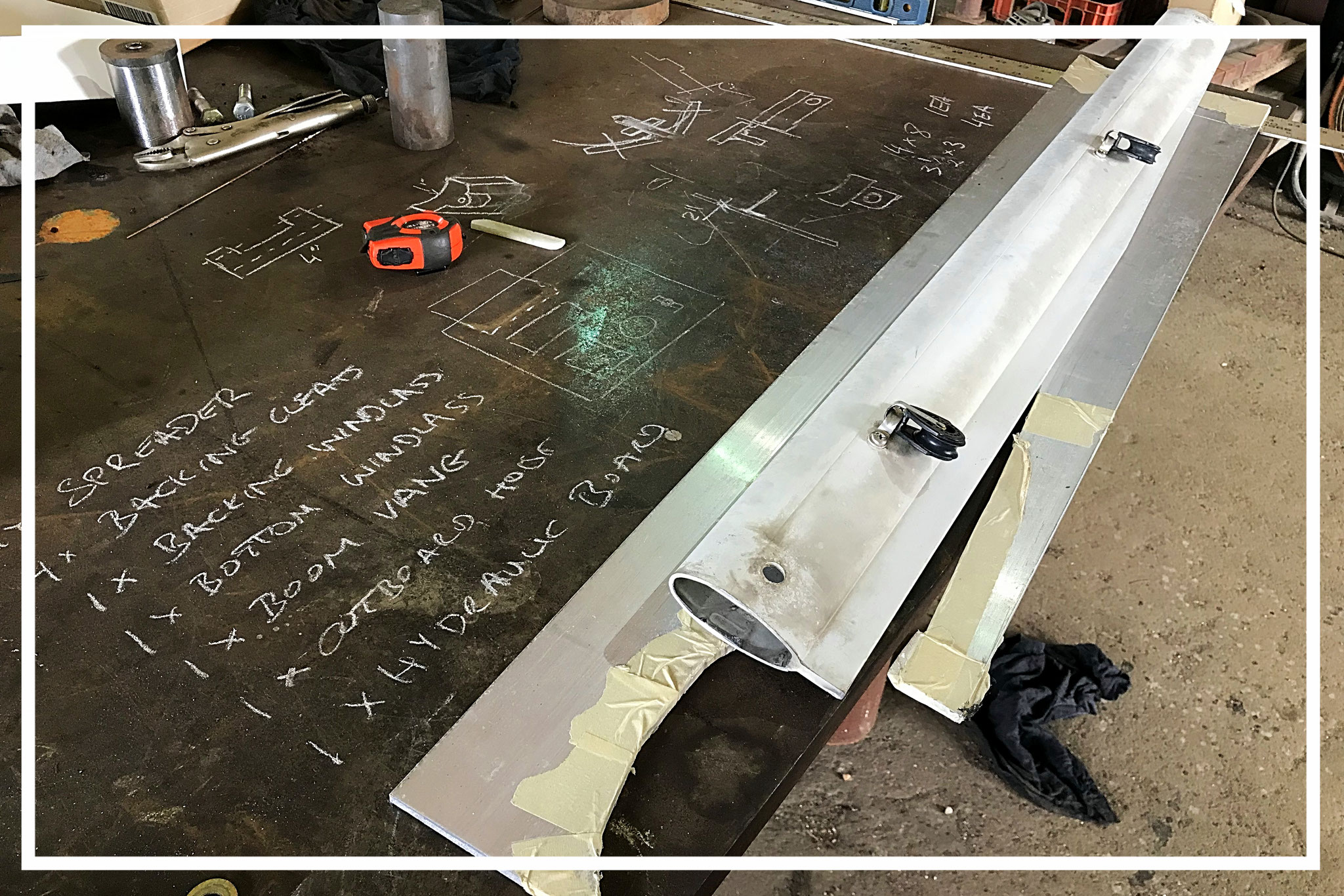

- welded Spreader crack (material Alu)

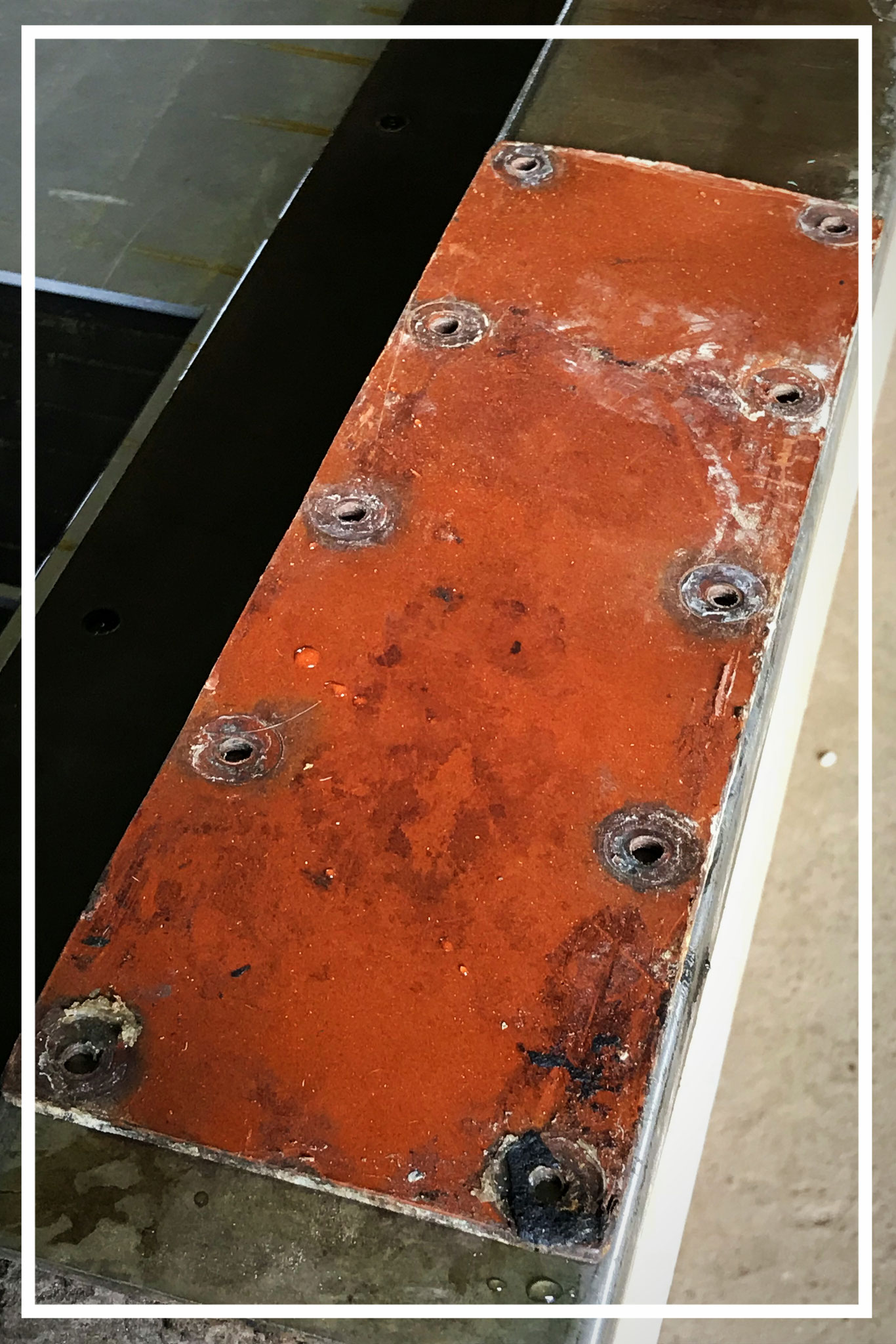

- Backing plates Windlass 14 x 8“ D1/4“ water jet cut out Alu 6061

- 4Pc Backing plates Cleats 3 1/2“ x 3“ D1/4“ water jet cut out Alu 6061

- Windlass Baseplate water jet cut out 4 3/8“ x 12 5/8“ D3/8“ Alu

- Engineered Outboarder Hoist

November 8th, 2017
- Demounted Staysail Rollerfurler, exchanged damaged foil, mounted Rollerfurler
- Demounted upper port side Spreader => discovered Crack close to base

November 7th, 2017

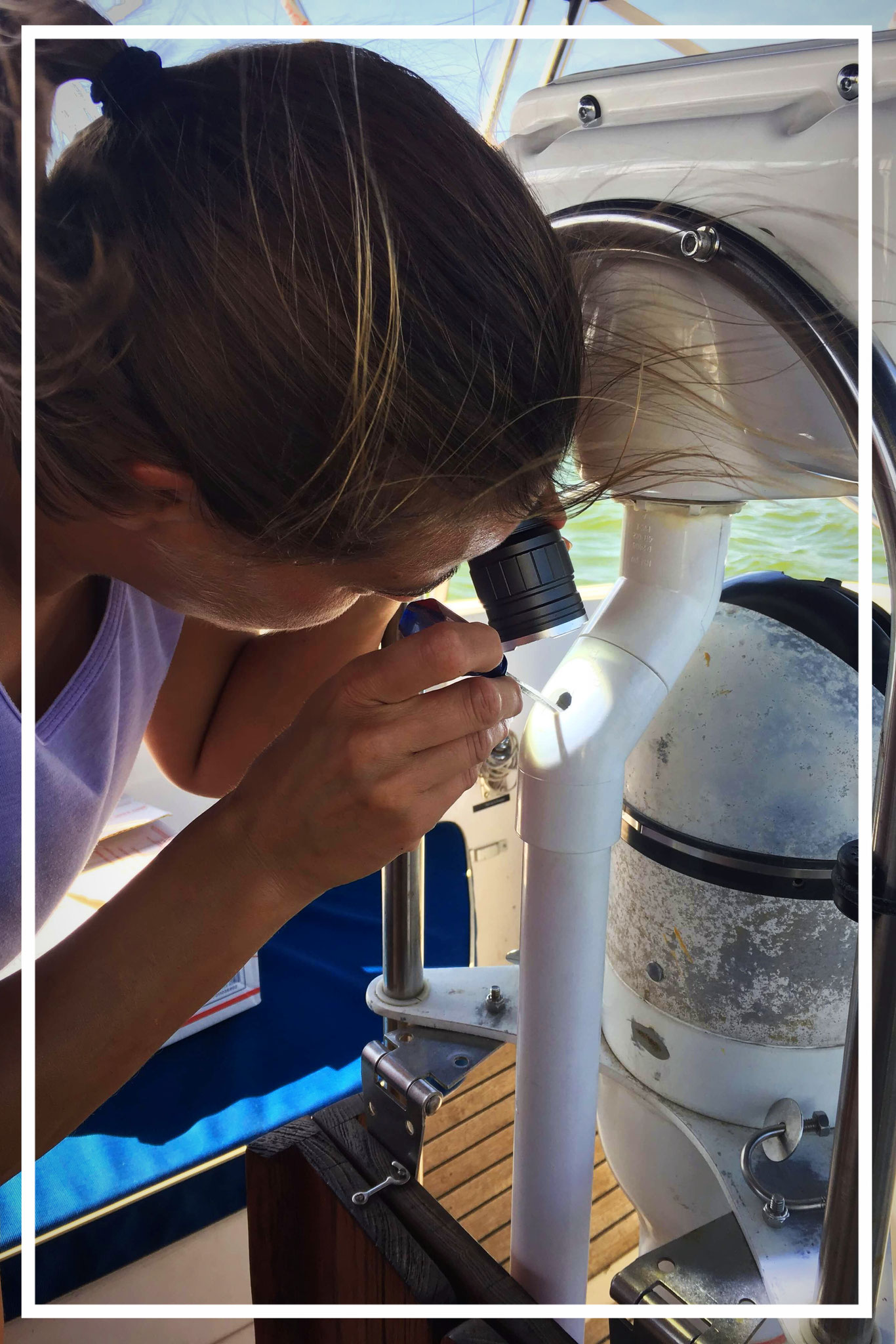

- Wired and connected compass light
- Cleaned bottom => not many Barnacles, more slime. Blister on rudder located

November 6th, 2017

- Installed engine diesel injectors

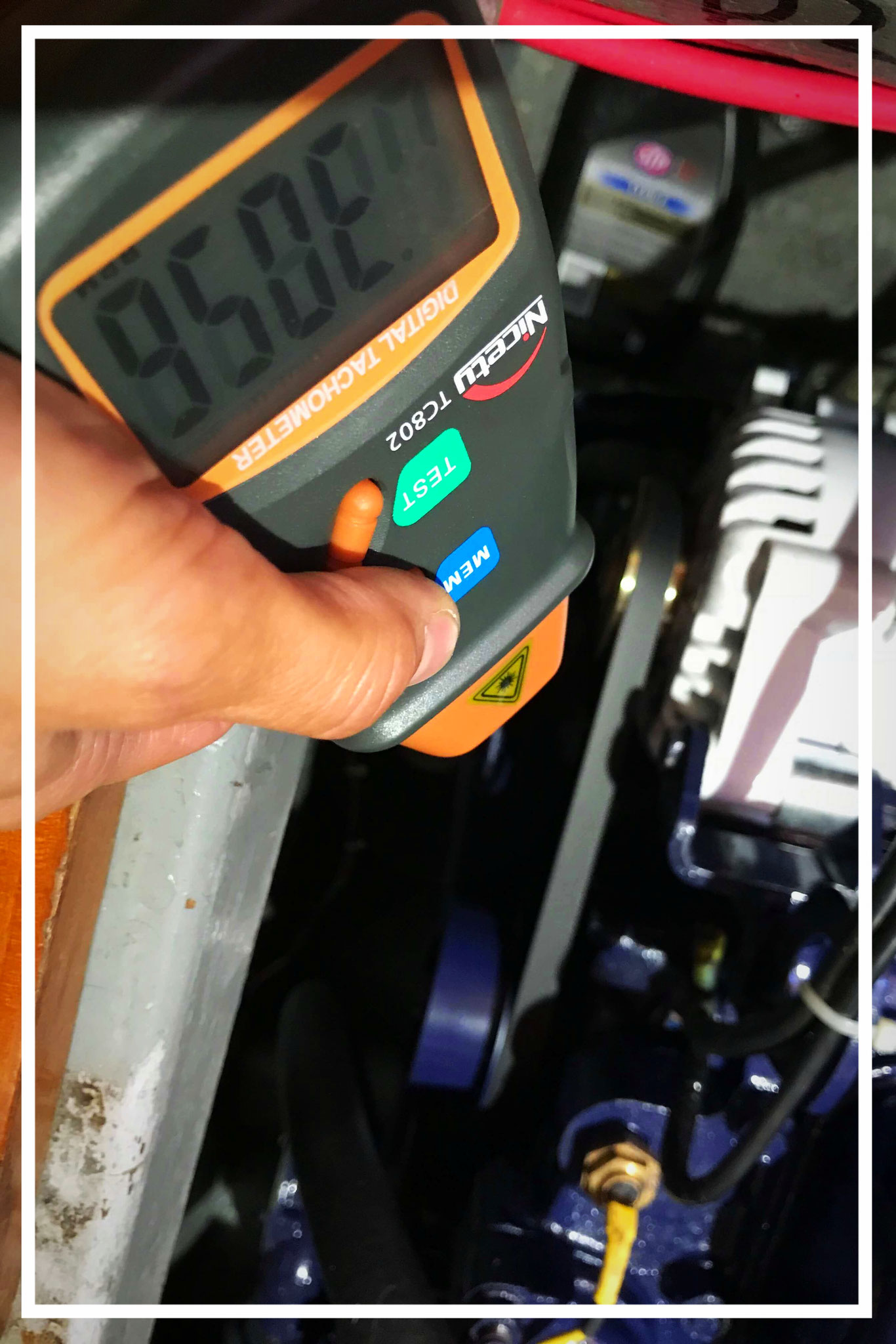

- Engine test run & calibrated engine RPM display
- Mounted the second windgenerator holding rod

November 4th - 5th, 2017
- Installed Main AC Pump and Seastrainer in a new location

- Installed USB and 12V plugins at the Cockpit Chartplotter

November 2nd - 3rd, 2017

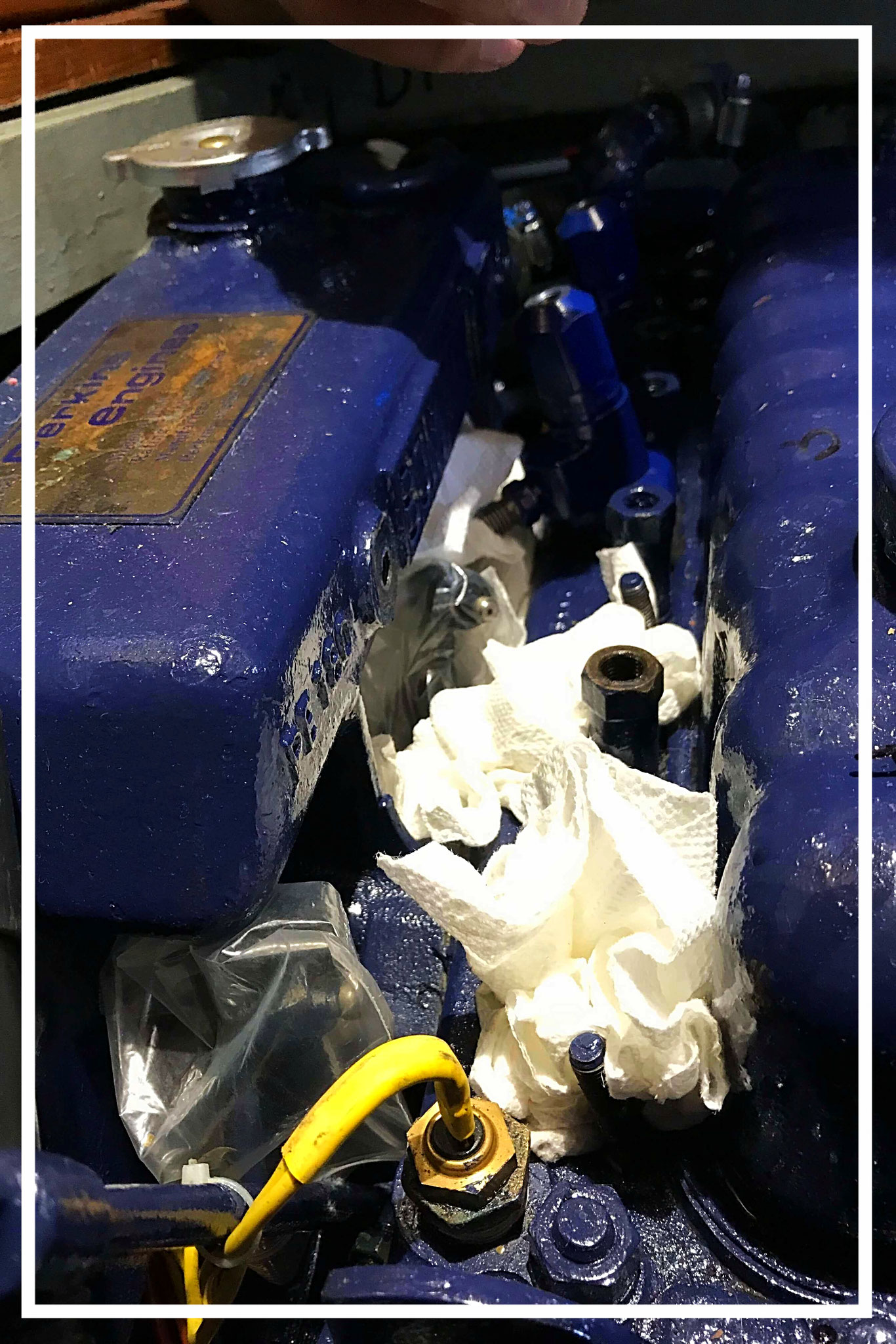

- Deinstalled Injectors on the Perkins 4.108 for testing

- Coastal Diesel Injection Service: Dropped off engine injectors for cleaning and nozzle replacement. Tested spray pattern => nok. Decided for nozzle replacement

October 31st - November 3rd, 2017

- Cleaned and derusted all Windlass parts in workshop

- Assembled Windlass

October 30th, 2017

- Taped, sealed and installed new port side (back) window
- Demounted second window on starboard side (front) and removed old sealant
- Bow navigation lights connected with new wires and mounted lights

October 29th, 2017

- Demounted old leaking freshwater foot pump head
- Disassembled and cleaned old freshwater foot pumps (galley and head)
- Mounted cleaned freshwater foot pump (head)

October 27th, 2017

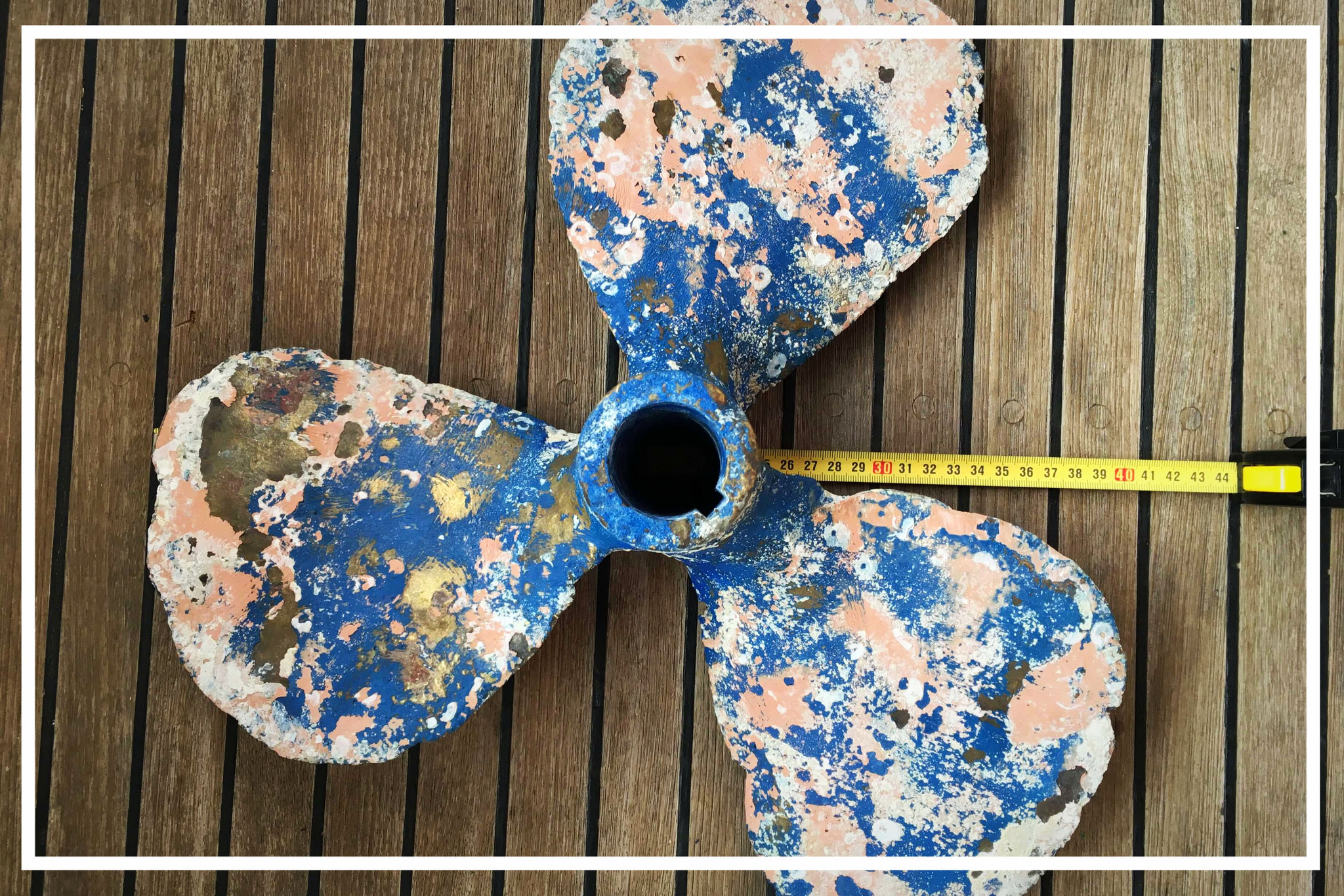

- Sail trail to test the Prop

October 25th - 28th, 2017

- Analyzed the Watermaker system installation. Mounted and connected first components of the Watermaker system

October 25th, 2017

- Cleaned demounted window frame

October 22nd, 2017

- Mounted and connected new Galley Freshwater Footpump

October 17th - 23th, 2017

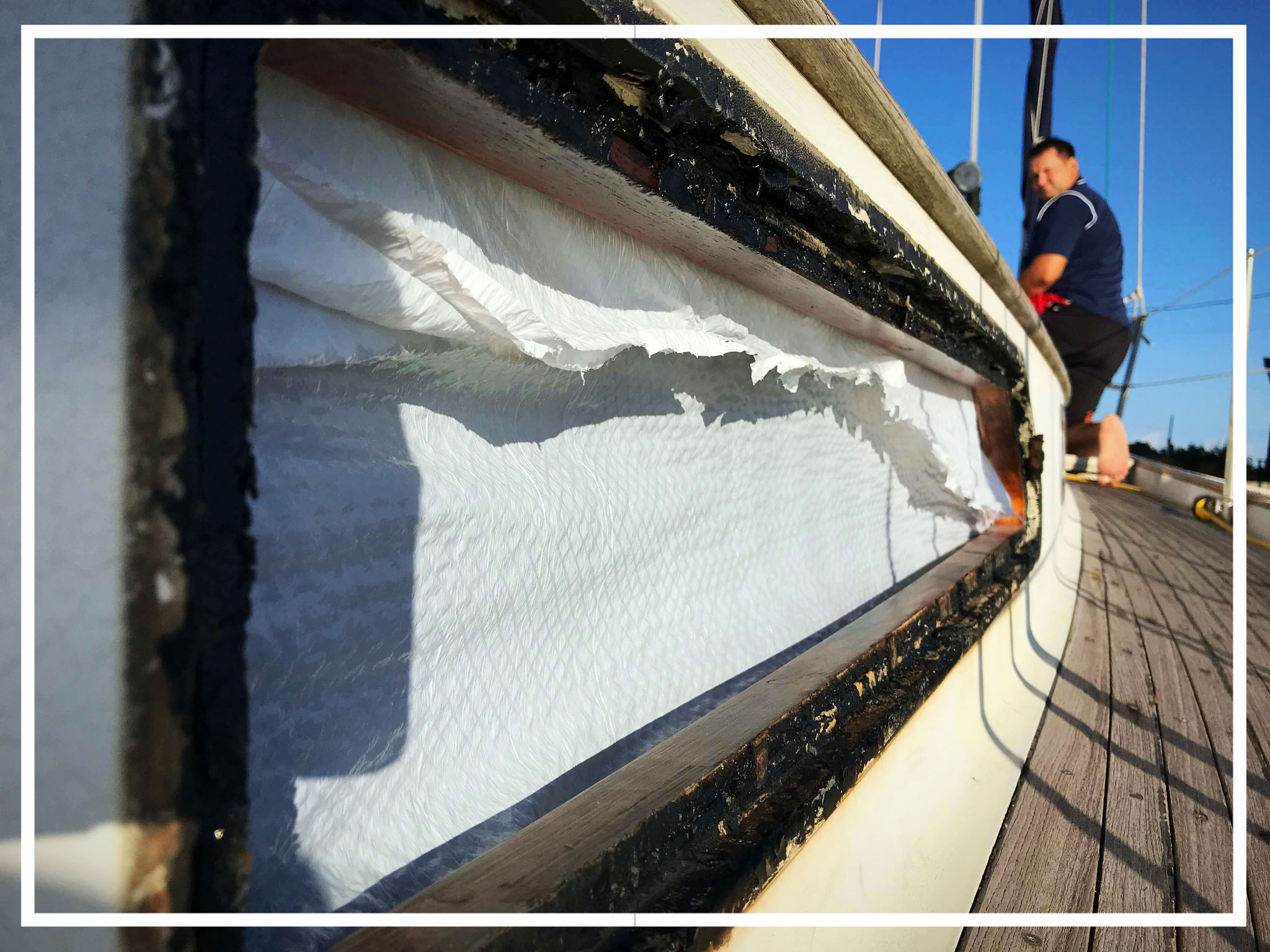

- Removed old sealant at the starboard side demounted window
- Installed and sealed new starboard side window

- Removed old sealant at the port side demounted window and prepared frame for installing

- removed tape from installed window

October 19th, 2017

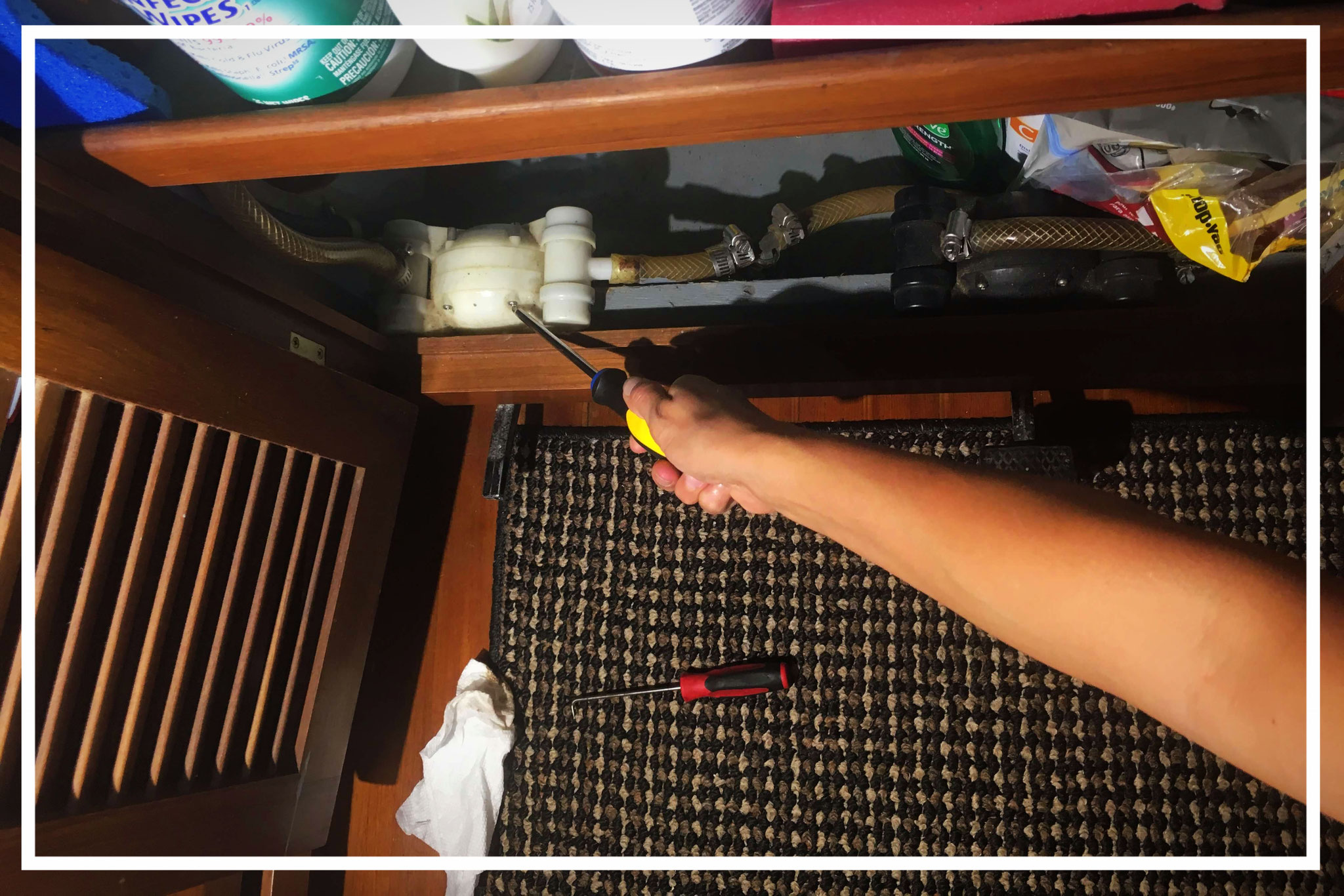

- Demounted old Galley Freshwater Footpump (leakage)

October 15th, 2017

- Exchanged Navigation lights on the bow

October 14th, 2017

- Checked and adjusted valve clearance on Perkins 4.108 (engine hours: 8.8)
- Connected ground to engine
- Changed engine oil and oil filter
- Checked transmission oil
- Engine test run

October 13th, 2017

- Cleared up the old area of the starter battery and pulled out obsolete cables
- Pulled new cables from shorepower plug to charger/inverter and partially charger/inverter to breaker panel
- Connected battery load indicators
- Set Air Conditioner 2 in to new area

October 10th - 11th, 2017

- Finalized Electric 12V side
- Pulled and connected main cables between Power Control Cabinet and Breaker Panel
- Connected windgenerator and calibrated charge controller
- Connected solar panels and adjusted  charge controller parameters
- Connected battery shunt to philippi system monitor via PBUS ... connection problems

October 8th, 2017

- Soldered and pulled Windgenerator and Solar Panel cables to power control cabinet

October 6th, 2017

- Windlass parts soaking in diesel

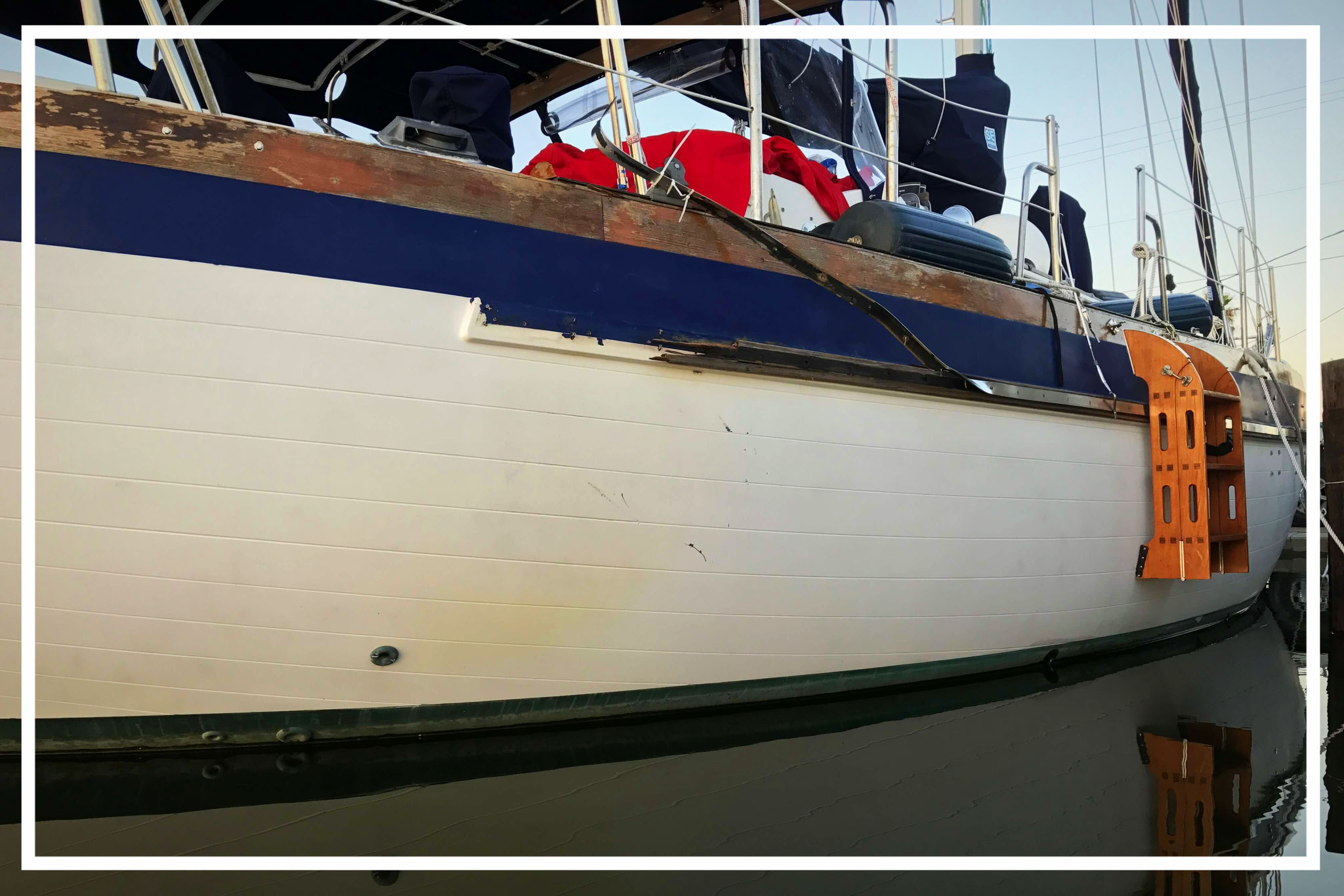

- Cleaned starboard stern side (damaged area)

October 4th - 5th, 2017

- Disassembled Windlass, checked condition of parts and ordered wear parts
- Disassembled Boom Vang hydraulic cylinder
- Windlass housing to powder coating company (Protective Powder Coating)

October 2nd, 2017

- Inspected, checked and tested every single part of the hydraulic Boom Vang system

October 1st, 2017

- Cut and adapted the panel for Philippi battery monitor panel
